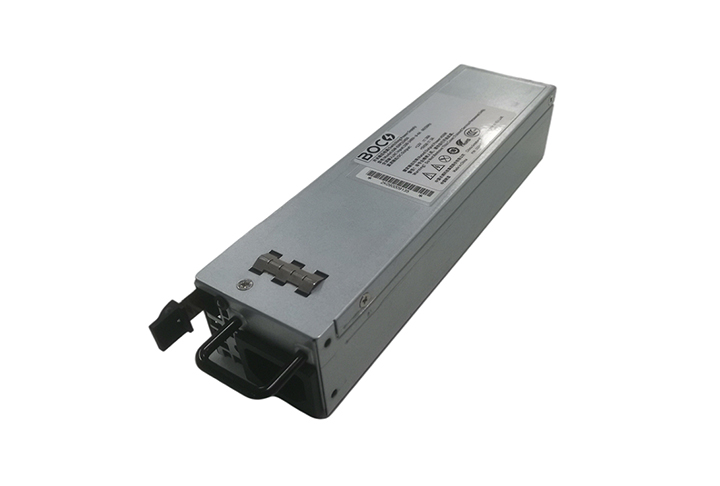

CRPS Power Suppy

BOCO's BCS series CPRS power supply conforms to the standard market's Common Redundant Power Supplies. The series contains 550W,800W,1300W,1600W,2000W 2700W and 3200W. The standard size provides the highest power, with a power density of up to 100W/inch ^ 3, and can provide efficient power supply for both platinum and titanium versions. Different inputs such as AC, HVDC, and LVDC are available for selection to meet different system configuration requirements.

Model Name	Efficiency	Power(W)	Input Voltage	Output Voltage(V)	Output Current(A)	Auxilary Output	Operating Temperature (℃)	Dimension (mm^3) LxWxH
BCSE550AP-12	80plus Platinum	550	90-264Vac 192-310Vdc	12	46	12V/2.1A	-5 ~ 55	185x73.5x39
BCSE800AP-12	80plus Platinum	800	90-264Vac 192-310Vdc	12	66.7	12V/3A	-5 ~ 55	185x73.5x39
BCSE800AD-12	Peak 94%	800	36-72	12.2	65.6	12V/2.1A	0-50	185×73.5×39
BCSE1300AP-12	80plus Platinum	1300	90-264Vac 192-310Vdc	12.2	106.5	12V/3A	-5 ~ 55	185x73.5x39
BCSE1300AT-12	80plus Titanium	1300	90-264Vac 192-310Vdc	12.2	106.5	12V/2.5A	-5 ~ 55	185x73.5x39
BCSE1600AD-12	80Plus Platinum	1600W	100-240VAC; 240 VDC	12V	133.4A	12V/2.1A	0 ~ 55	185x73.5x39 mm^3
BCSE2000AP-12	80plus Platinum	2000	90-264Vac 192-310Vdc	12.2	161.5	12V/3A	-5 ~ 55	185x73.5x39
BCSE2700AP-12	80plus Platinum	2700	90-264Vac 192-310Vdc	12.2	221	12V/2.5A	-5 ~ 55	185x73.5x39
BCSE3200AT-12	80plus Titanium	3200	90-264Vac 192-310Vdc	12.2	262	12V/2.5A	-5 ~ 55	185x73.5x39

3/9

View all

1U Slim Power Supply

BOCO's 1U Slim power supply provide no more than 54mm width power supply for edge computing, 5G and other scenarios.

Model Name

Efficiency

Power(W)

Input
Voltage

Output
Voltage(V)

Output
Current(A)

Auxilary
Output

Operating
Temperature(℃)

Dimension
(mm^3)
LxWxH

Power Supply Rear Plane

Power supply rear plane helps to extend BCS series power supply application, by converting the BCS power supply 12V output to +12V, +5V,+3.3V,-12V.

Model Name	Power(W)	Main Input(V)	Main Output1	Main Output2	Main Output3	Auxilary Output	Operating Temperature(℃)	Dimension (mm^3) LxWxH
BPR800	800	12	12V/45A, x2	5V/38A	3.3V/24A	5V/4A -12V/0.5A	-5 ~ 55	265x77x84

1/1
